Product Features:
◆Comply with relevant national agreements: JT/T 808-2013, JT/T 1078-2016

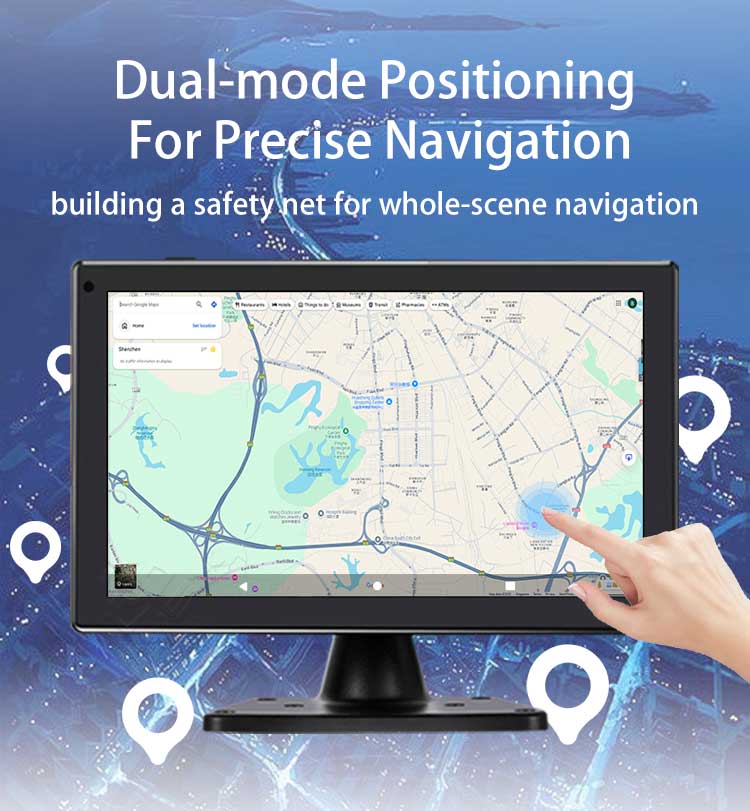

◆Support GPS+Beidou dual mode
◆Support dedicated encryption module private network
◆Support real-time scheduling
◆Built-in artificial intelligence algorithm, supports blind spot pedestrian warning detection system, advanced driver assistance system and driver management system. Supports recording and uploading of high-definition video
◆Support TTS voice remote digital information delivery
◆The UI design interface is beautiful and simple

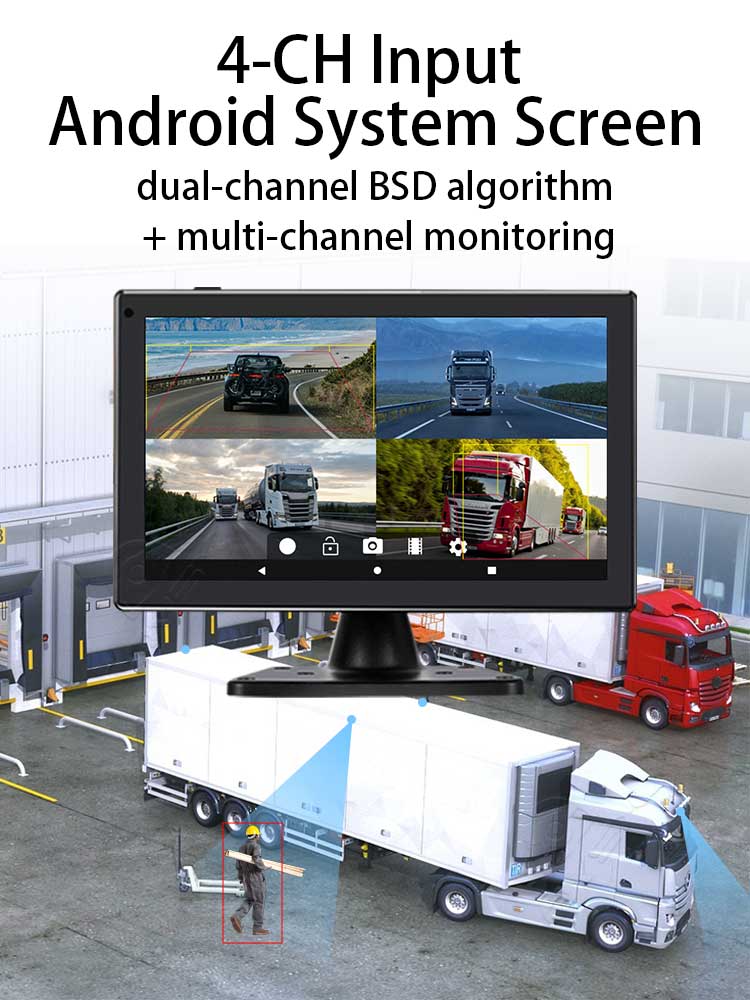

◆Support 4-channel 720P HD video real-time storage and upload
AR navigation
◆Support China Mobile, China Unicom, China Telecom SIM cards
◆Supports 1 SD card for loop storage at the same time
|
Technical items |
Technical indicators |
|
|
operating system |
operating system |
Android 10 |
|
Control Mode |
network |
|
|
video |
AHD720P |
4-channel 720P |
|
Video signal |
PAL |
|
|
Audio |
enter |
1 channel audio |
|
Output |
1Channel Audio |
|
|
show |
Screen Display |
4-screen display |
|
Video |
Video and audio compression format |
videoH.264 |
|
Image resolution |
CIF,HD1,D1,720P |
|
|
Video recording mode |
Power on/Manual recording event |
|
|
Real-time video recording |
support |
|
|
Lock video recording |
support |
|
|

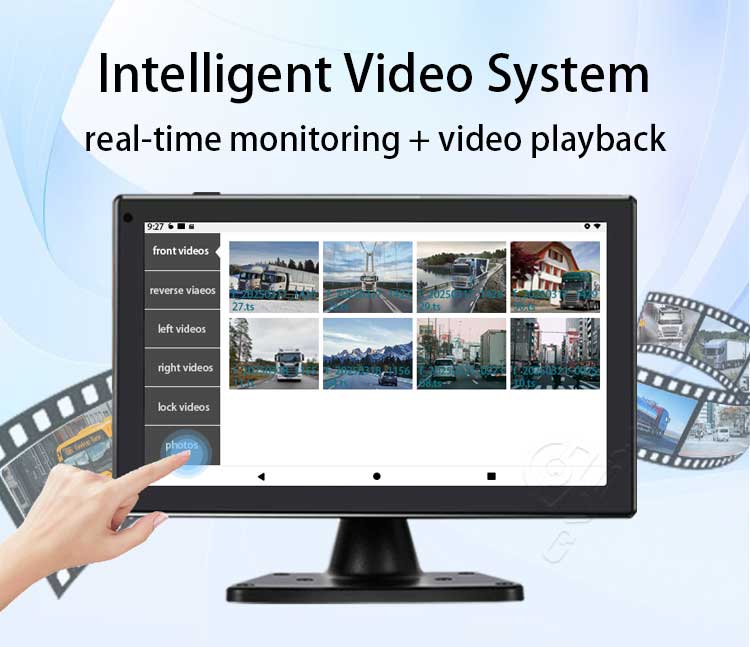

Playback |
Playback Channel |
Support local channel synchronous playback, PCSoftware remote single channel playback |
|
Browse Mode |
Time, Channel |
|
|
network |

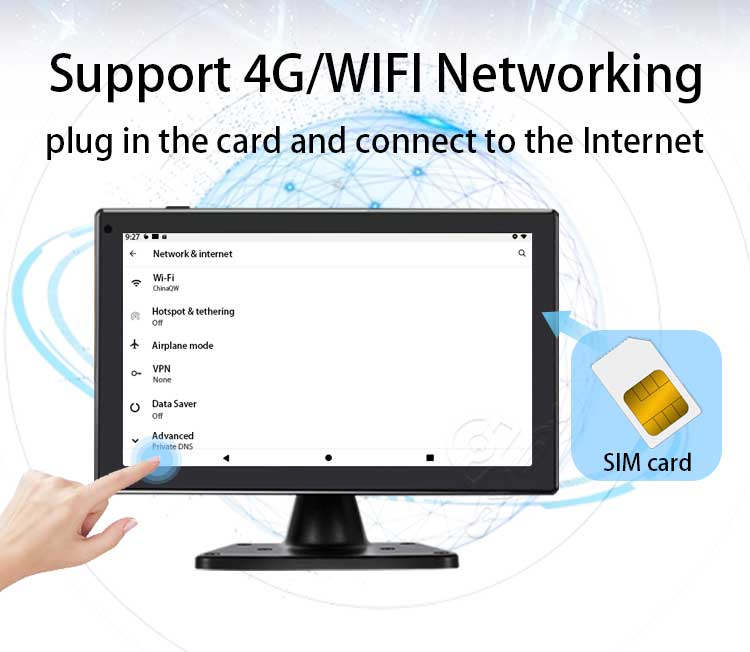

2G/3G/4G |
China Mobile TD-LTE, China Unicom TD-LTE, China Unicom FDD-LTE, China Telecom TD-LTE, China Telecom FDD-LTE, China Mobile 3G (TD-SCDMA), China Unicom 3G (WCDMA), China Telecom 3G (CDMA2000),China Unicom 2G/China Mobile 2G (GSM) |
|
storage |
SD |
A single card supports up to 256G |
|
Note: Supports up to 4 cameras |
||
|

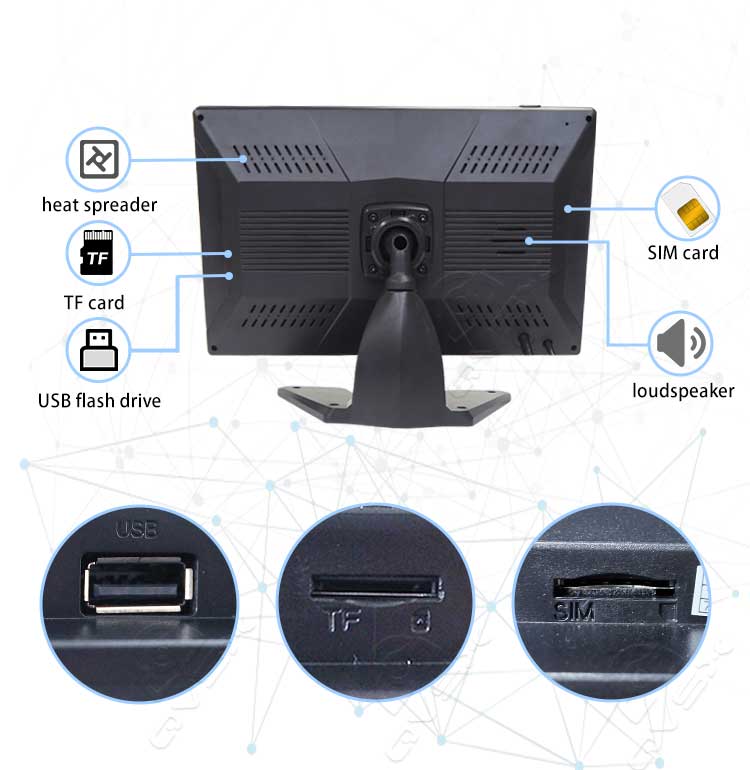

Interface Characteristics |
Interface Description |
|
|
interface |
Typc USB interface |
Maintenance and local software upgrades |
|
SIM card |
Single Card (Used forGPSData upload and video data transmission) |
|
|
SD Card |
A single card supports up to 256G |
|
|
SPK/TTS |
Intercom, TTS voice broadcast |
|
|
Other Features |
Operating voltage |
DC 12-24v |
|
Working current |
850mA@12V (with load) |
|
|
Operating temperature |
-25℃ — +80℃ |
|
|
Storage temperature |
-40℃ — +85℃ |
|
