Video input |
Max.6CH×1080P AHD (25/30)FPS |
Compatible with 6CH * 720P (25FPS/30FPS) |
|
Startup with picture |
Support fast picture of single channel screen within 3 seconds |
Display view types |
Single channel view of each camera |
Six split view |
|
2D panoramic view (original 2D view) |
|
3D panoramic view at any perspective |
|
Storage |
1×SSD card(Need to purchase separately) |
Additional G-sensor |
Optional: Ultrasonic radar, microwave radar, pedestrian detection camera |
Power supply |
10-32V |
Operating voltage range of external trigger signal |
10-32V |
Operating current |
<2A/12V |
Operating temperature |
-20℃ ~ 70℃ (Able to be customized up to -40°C~85°C) |
Storage temperature |
–40℃ ~105℃ |
Operating humidity |
10%-95% |

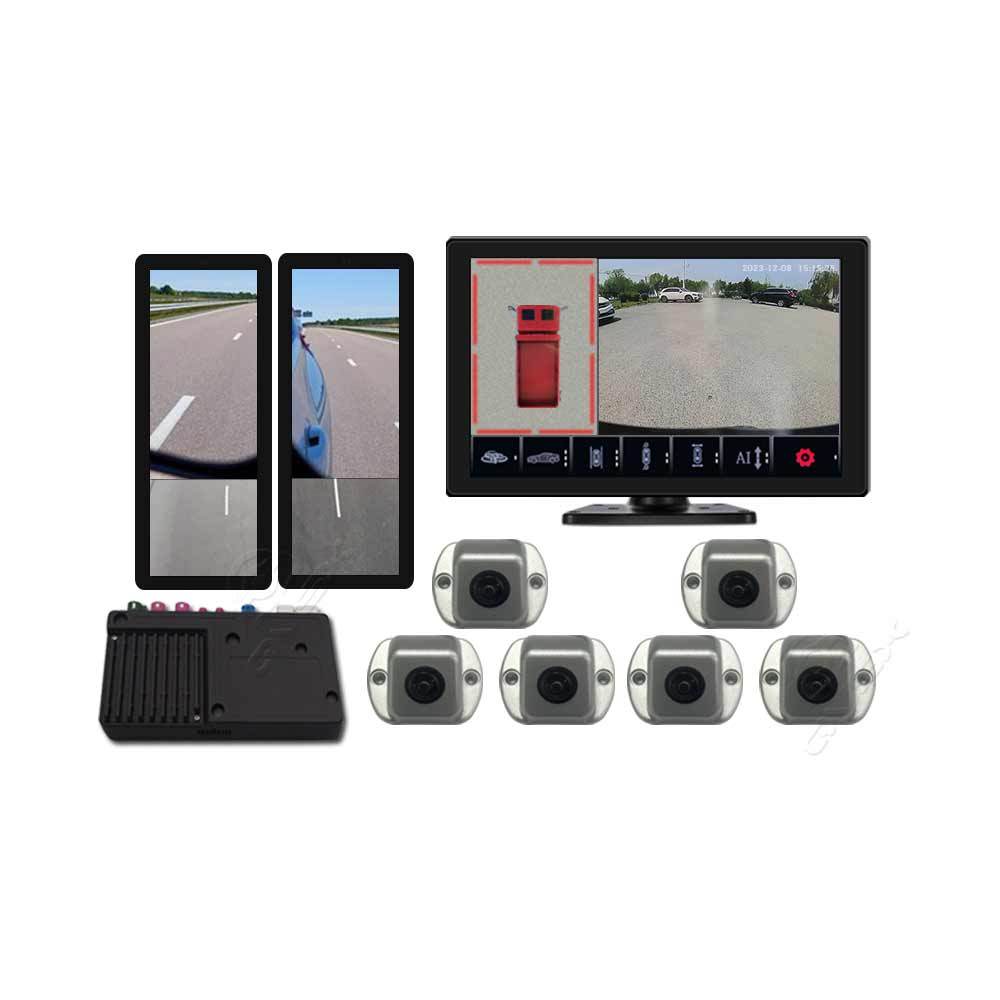

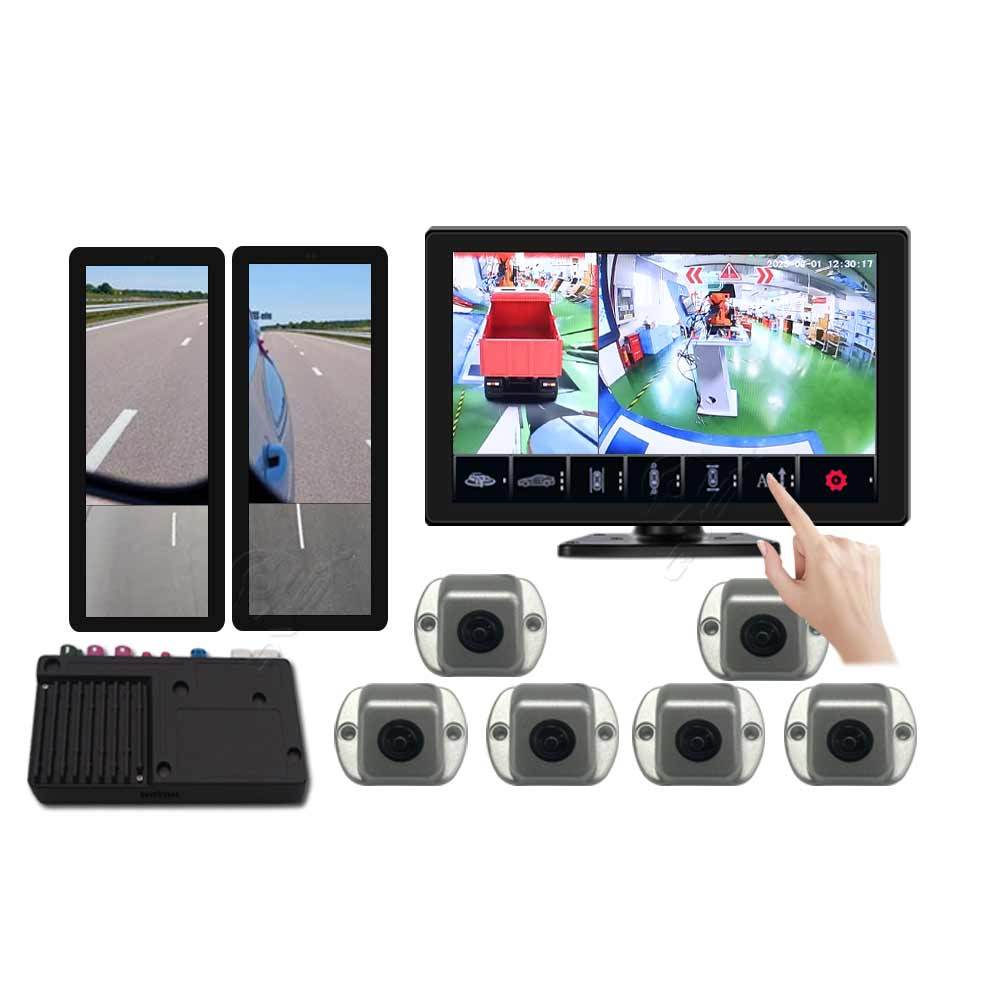

360 Degree Surround View Camera:
Resolution |
1080P 720P |
Output signal |
AHD |
Image Device |
CMOS |
Frame Rate |
25/30 |
Automatic White Balance |
Available |
Automatic Exposure |
Available |
Night vision |
Starlight level |
Visiable when<0.1lux |
|
infrared light is not required |
|
White balance |
Automatic |
Exposure |
Automatic |
Power supply |
DC 9~16V/DC 10~32V |
Waterproof rating |
IP68 |
